Grate Kiln Induration System Components

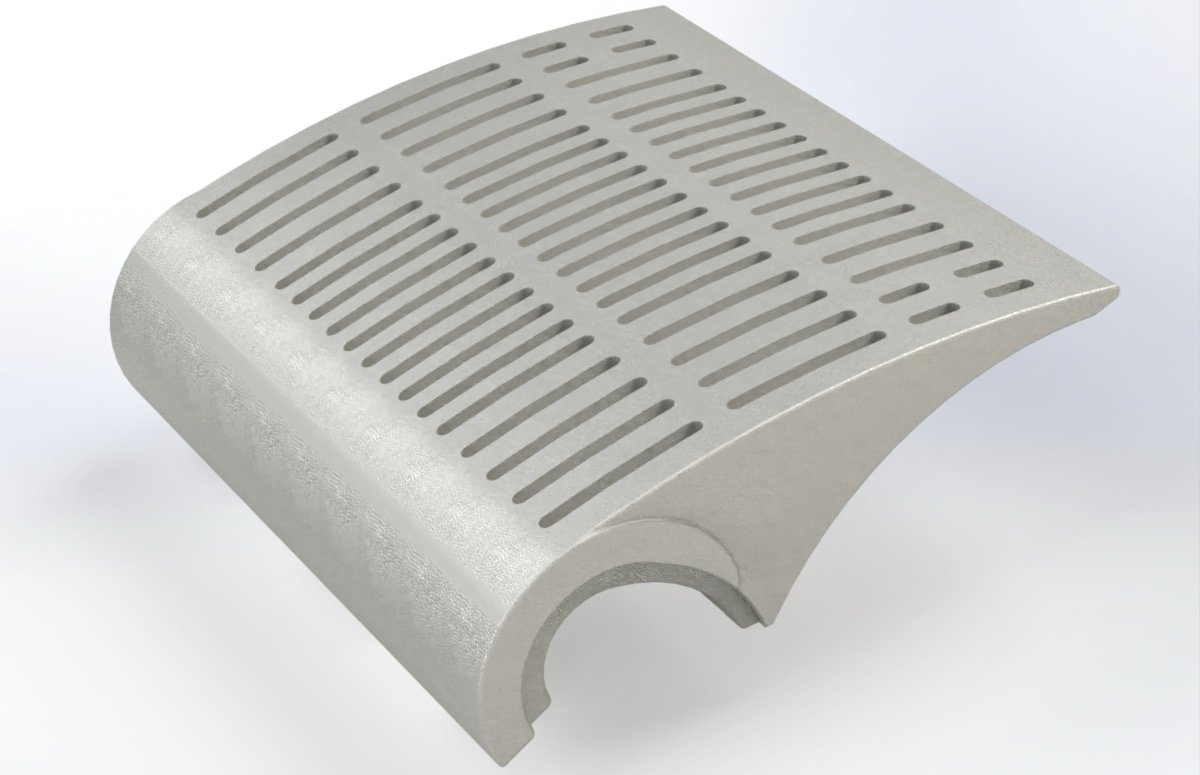

Grate Plate
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

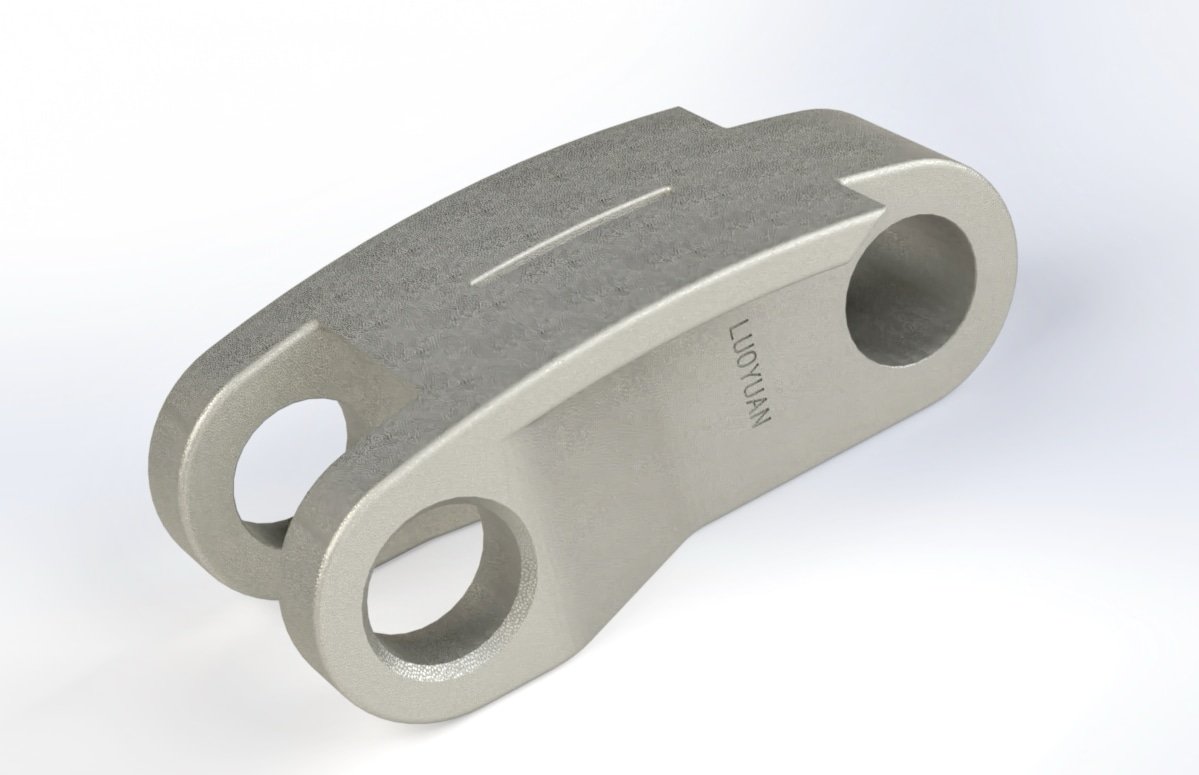

Link
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

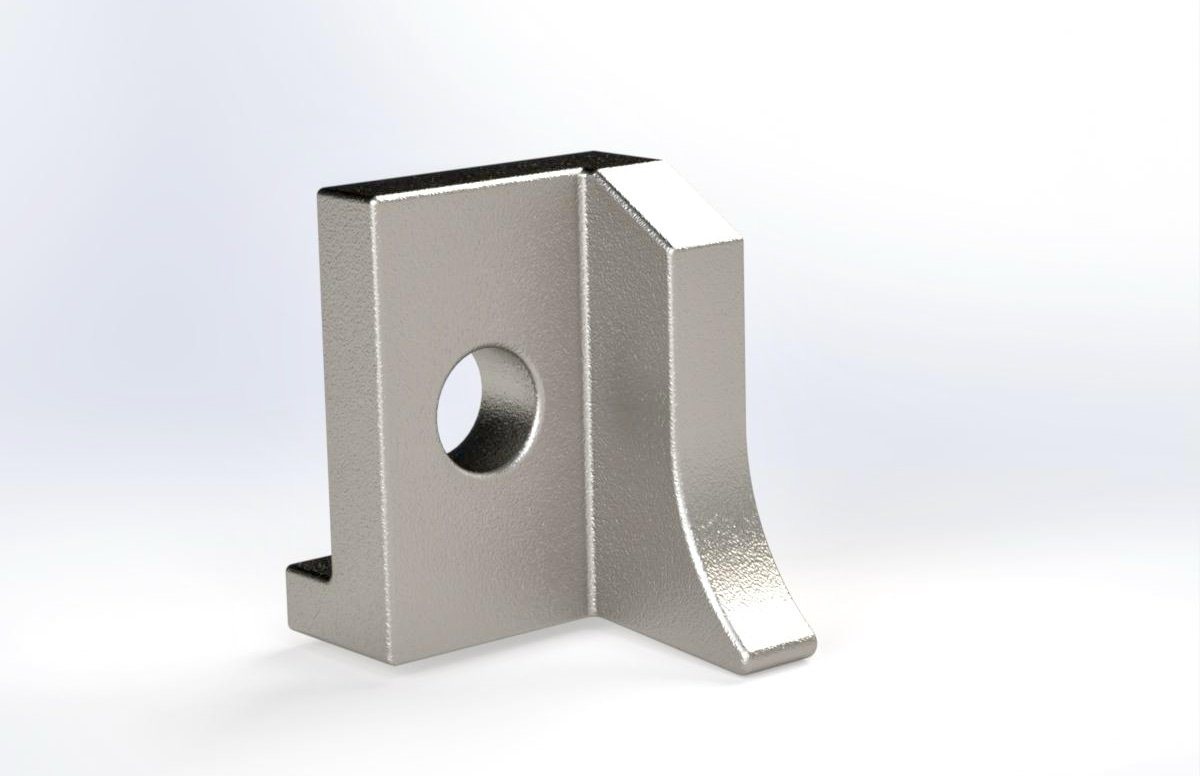

Grate Broad Plate (left)
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

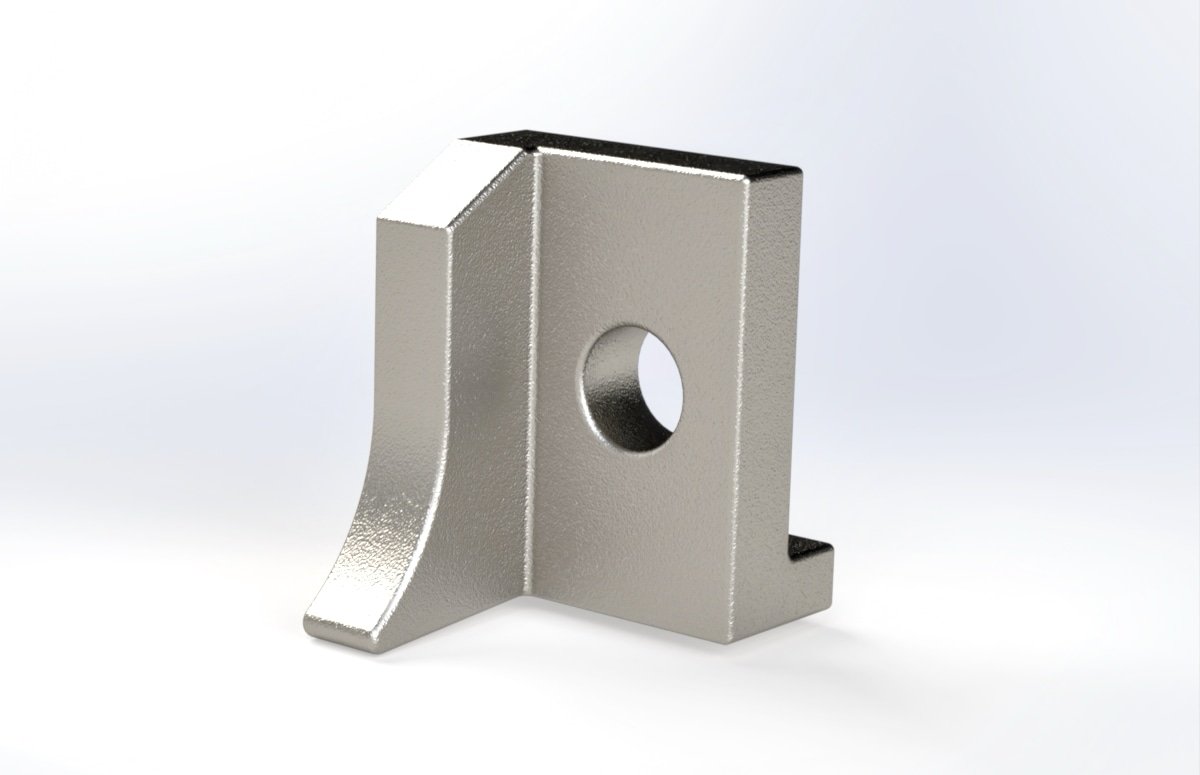

Grate Broad Plate (right)
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

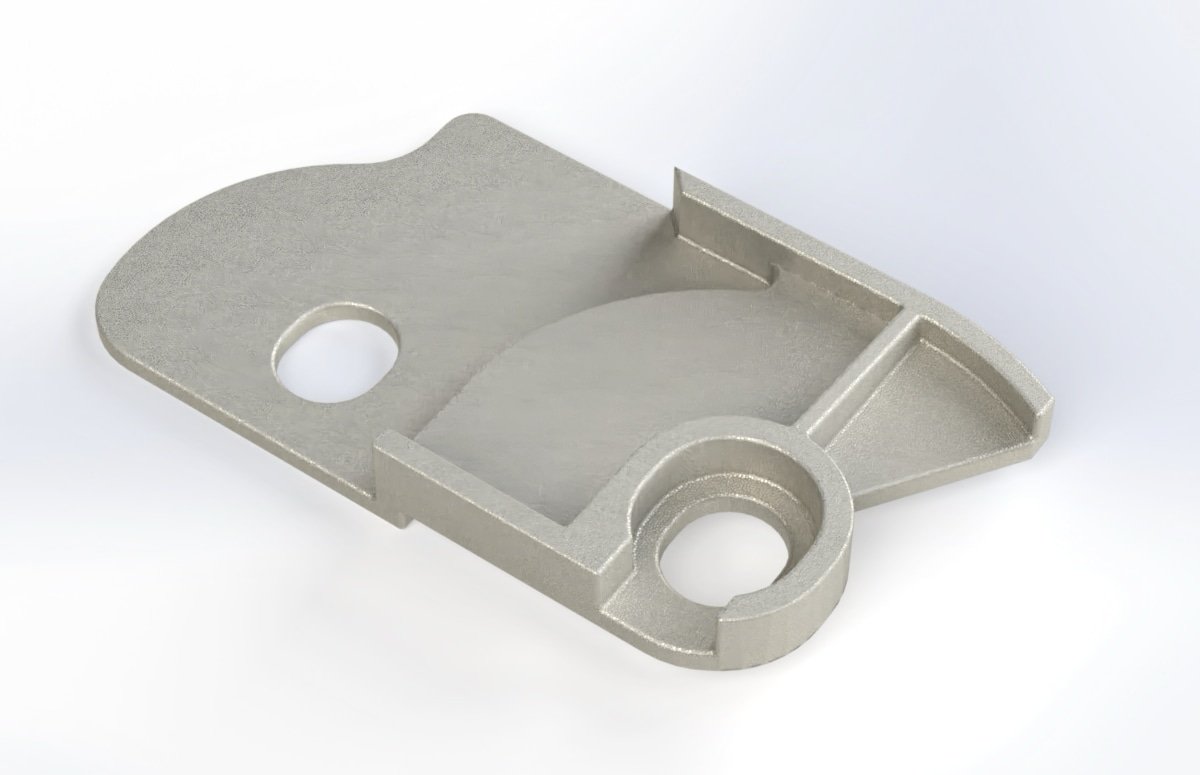

Side Plate (left)
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

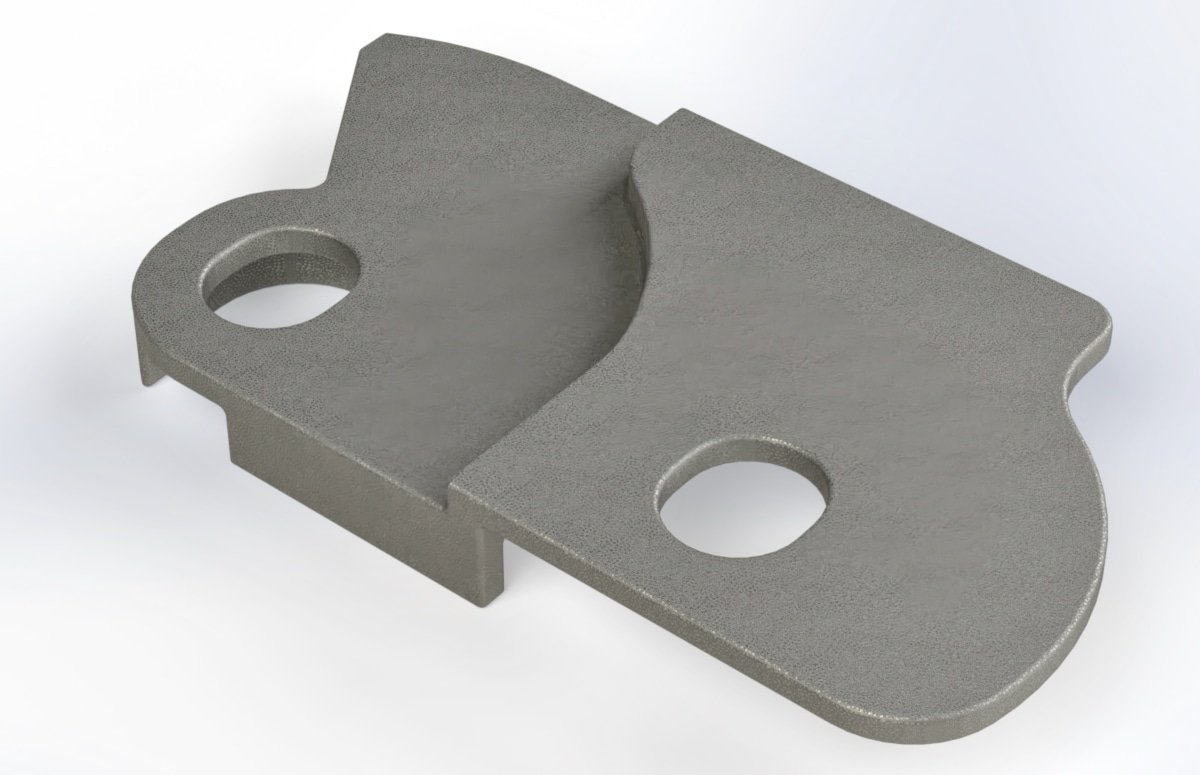

Side plate (right)
| Material | ASTM-A-297-HH |
| Casting | Coated Sand Core Casting |
| Heat Treatment | Solution Treatment |
| Heat Resistance Temperature | ≤ 1250℃ |
| Yield Strength | ≥ 300MPa |
| Tensile Strength | ≥ 520MPa |
| Elongation Percent | ≥ 12% |

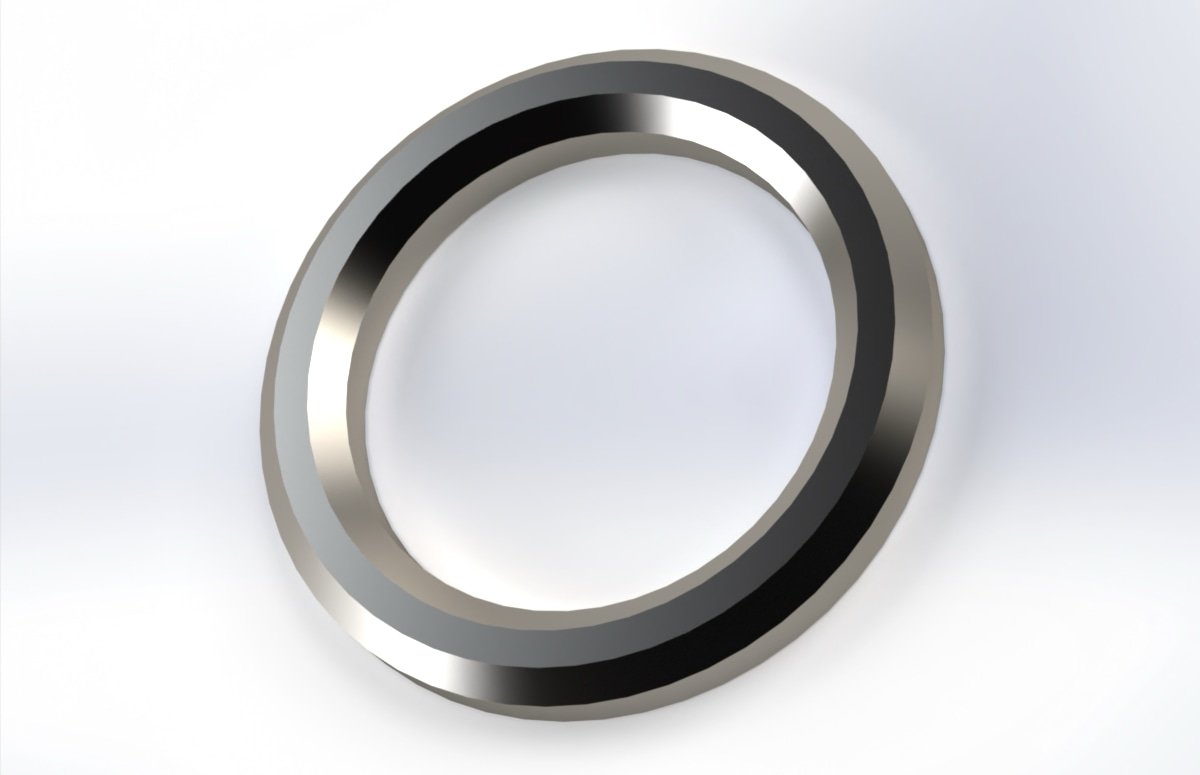

Snap Ring
| Material | 35CrMo |
| Casting | Machined Parts |
| External Dimensions | 100% Dimensional I nspection |
| Yield Strength | ≥ 930MPa |
| Tensile Strength | ≥ 1080MPa |
| Elongation Percent | ≥ 10% |

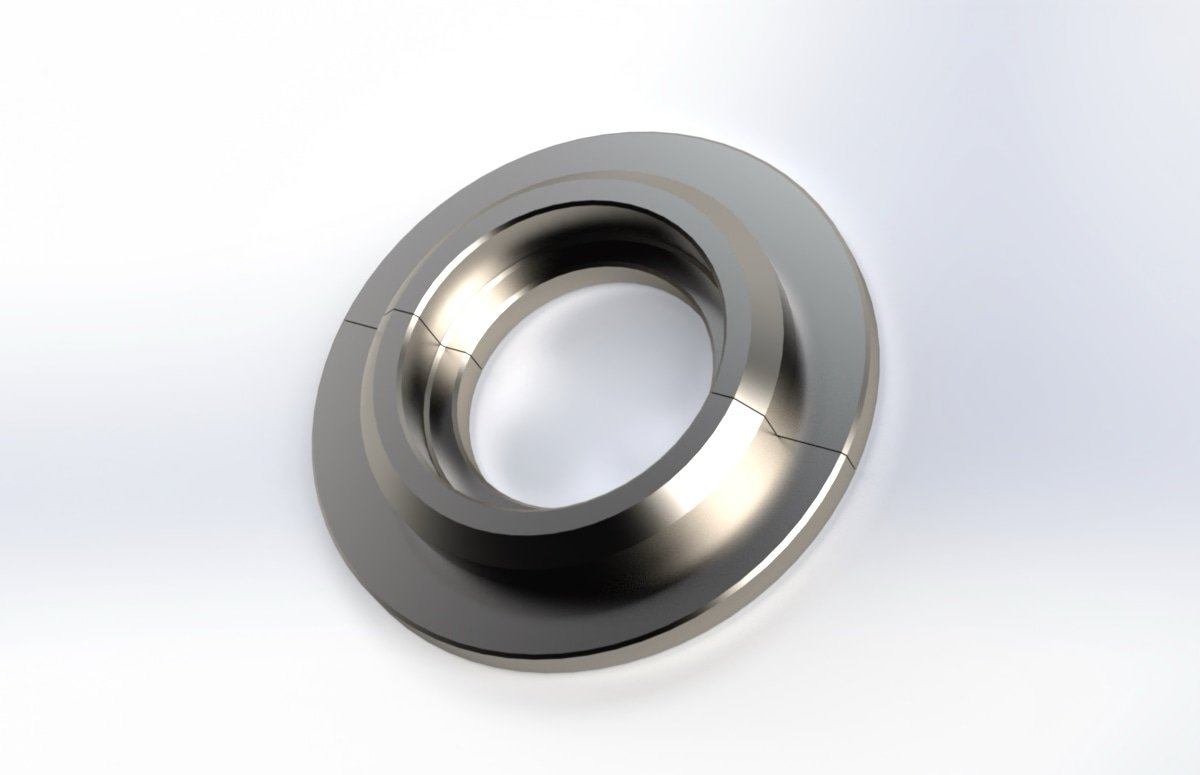

Axle Sleeve
| Material | 35CrMo |
| Casting | Machined Parts |
| External Dimensions | 100% Dimensional I nspection |
| Yield Strength | ≥ 930MPa |
| Tensile Strength | ≥ 1080MPa |
| Elongation Percent | ≥ 10% |
